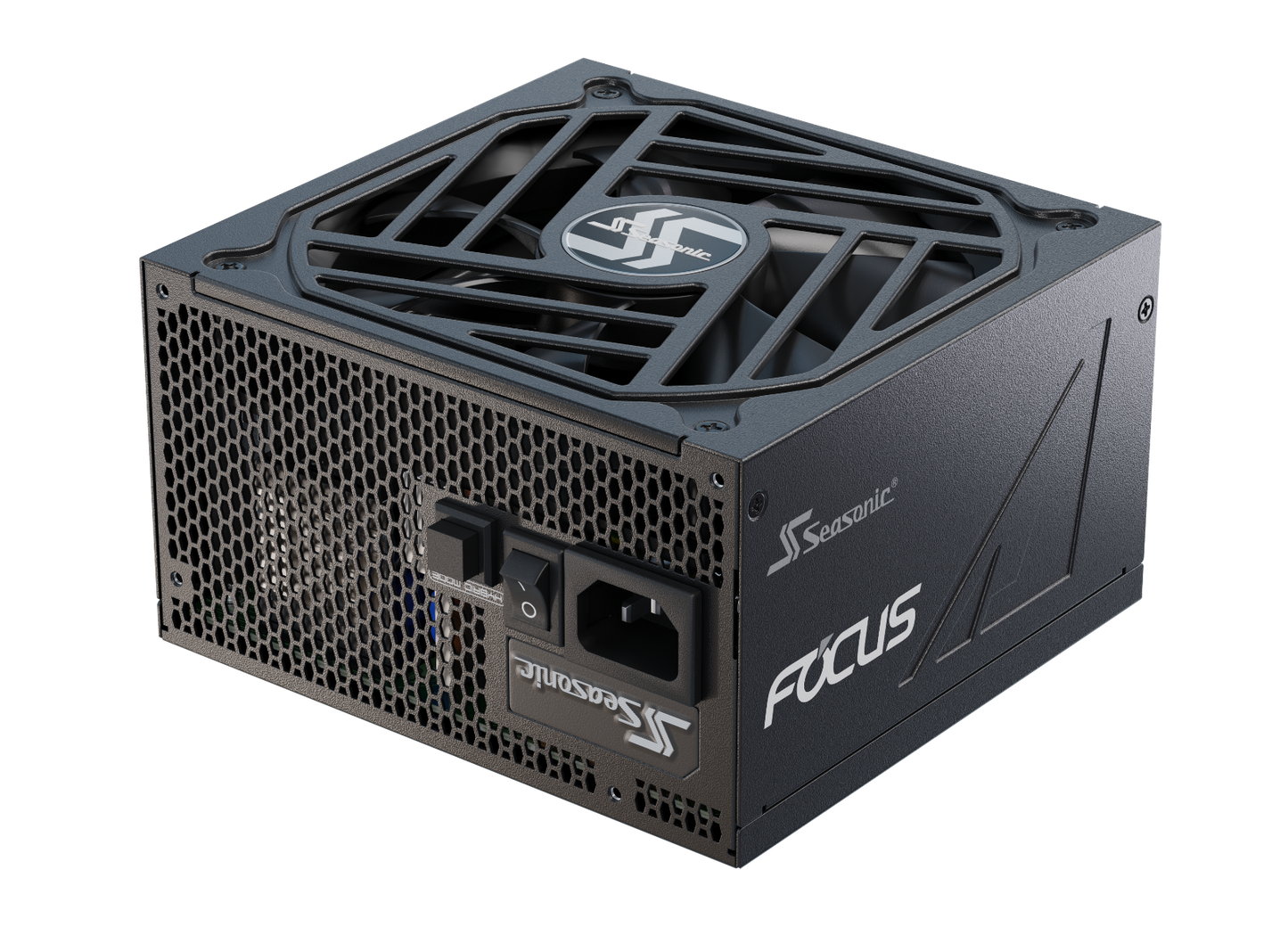

Seasonic FOCUS GX-750 ATX 3.0 750W Gold PSU (SSR-750FX3)
Seasonic FOCUS GX-750 ATX 3.0 750W Gold PSU (SSR-750FX3)
Regular price
$293.99 AUD
Regular price
$383.95 AUD
Sale price
$293.99 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
FEATURE SUMMARYATX 3.0 and PCIe 5.0 Cable (12VHPWR) 80 PLUS® Gold certified Compact Size - 140 mm deep Top-Quality 135 mm FDB Fan Digital Hybrid Fan Control S3FC - Fanless until 30% load Cable-free Connection Design Tight Voltage Regulation Gold plated connectors 10 years warranty
| Technical Specifications | ||
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | Intel ATX 12V | |
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | S3FC - Fanless until 30% load | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40°C, 15% - 65% RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Individual Black Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 - 50°C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 10 Years | |
Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V |
|||||
Current: 10 - 5 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail |
+3.3 V |
+5 V |
+12 V |
-12 V |
+5 VSB |
Maximum Power | 20 A | 20 A | 62 A | 0.3 A | 3 A |
|
100 W | 744 W | 3.6 W | 15 W |
|||
Total Continuous Power | 750 W | |||||
